FluorPure-GSS PTFE Cartridge Filter
Request a QuoteIntroduction
MS®FluorPure ECTFE filters using ECTFE membranes along with ECTFE support and ECTFE or PP components. ECTFE exhibits outstanding chemical and temperature resistance compared to melt blown polypropylene or microfiber glass filter media at a substantially lower cost than commonly used fluoropolymer membranes. It is particularly resistant to attack by ozone, one of the most powerful oxidants known. The advanced design, innovative features make the FluorPure ECTFE cartridge truly exceptional for a range of critical processing applications.
Features
- Halar media offers increased chemical and thermal resistance
- Great durability and mechanical strength. Low extractables
- Manufactured in a clean room environment
- Extremely pure filtration media
Applications
- Electroless nickel plating solutions
- High purity chemical filtration
- Ultrapure water systems using ozone
- Hot ultrapure water systems
Specifications
| Materials of Construction | |
| Filter medium | High purity melt blown ECTFE (Halar) |
| Support and drainage | Polyester upstream/Halar downstream (standard) |
| Inner support core | Inner support core |
| Outer protection cage | |
| End caps | |

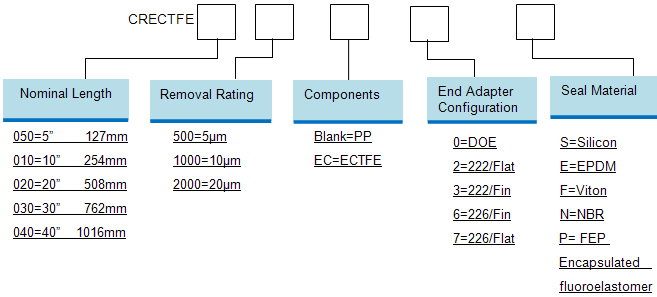

| O-rings | Please refer to the ordering information |
| Recommended Operating Conditions | |
| Maximum temperature | 82℃ (180℉) |
| Maximum forward pressure | 4.8 bard (70 psi) @ 49℃ (120℉); 3.4 bard (50 psi) @ 82℃ (180℉) |
| Recommended change-out pressure | 2.4 bar (35 psi) |
| Particle Removal Ratings (Nominal, μm) | 5, 10, 20 |
| Effective Filtration Area: (10inch) | 7.54ft²/10 in length (0.6m²/250mm) |

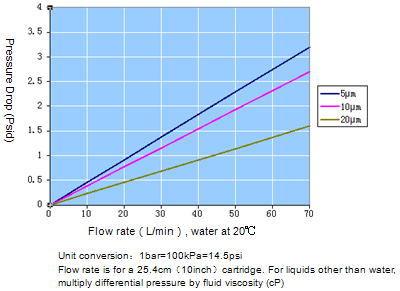

Pressure and Flow Rate
Pressure and Flow Rate
