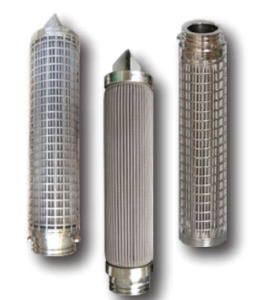

CRPM Series Metal pleated Filter Cartridge
Request a QuoteDescription
CRPM series metal pleated filter cartridge is pleated by special stainless steel wire mesh. The pleated process enables the filter cartridge to have a large filtration area, high dirt holding capacity and high flow rate. Each seal adopts the argon arc welding process without leakage. Under the high temperature and high pressure filtration environment, the stainless steel filter cartridge has excellent performance, and the filter cartridge can be repeatedly cleaned.
Features
-
Pore distribution, good permeability
-
Mental material has higher mechanical strength
-
No media shedding
-
Wide temperature range that can be used
-
Strong corrosion resistance, not easy to damage
-
Washable and long service life
Applications
-
Filtration of steam
-
Filtration of oxidizing liquid
-
Filtration of high viscosity liquid
-
Filtration of liquid and gases under high temperature and high pressure condition
-
Decarbonization filtration of material liquid
-
Filtration of strong acid and alkali liquid
-
Filtration of ozone water at bottled water
Technical Parameters
|
Materials of Construction |
Removal Rating |
1μm/3μm/5μm/10μm |
|
Length |
10"/20"/30"/40" |
|
|
Filter Membrane |
Stainless Steel Wire Mesh |
|
|
Cage/End Cap/Core |
Stainless Steel |
|
|
O-rings |
See filter cartridge selection table |
|
|
Operating Conditions |
Maximum Operating Temperature |
200℃ |
|
Maximum Differential Pressure |
5 bar |
Ordering Information
|
CRPM |
Material |
Length |
Removal Rating |
End Cap |
Seal Material |
|
4=304 Stainless Steel 6=316L Stainless Steel |
005=5" 010=10" 020=20” 030=30” 040=40” |
100=1μm 300=3μm 500=5μm H10=10μm |
2=222/Flat 3=222/Fin 6=226/Fin 7=226/Flat |
S=Silicone E=EPDM F=Fluorine N=Nitrile Rubber
|
