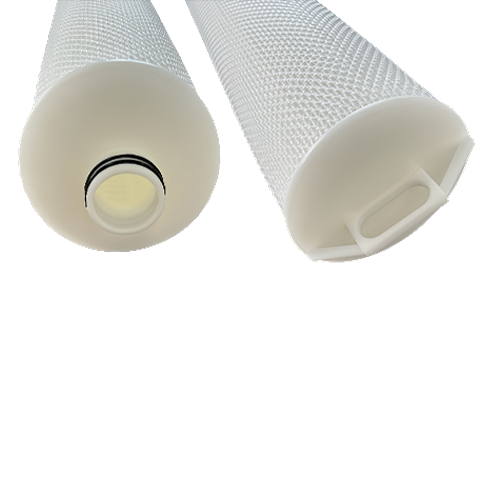

MS PlatPure Pleated Filter Cartridge with High Flow
Compared with traditional filter cartridges, the design of MS PlatPure high-flow filter cartridge is easier to use while improving production efficiency. The filter cartridge is 100% hot-melt welded and can also be used at higher temperatures. The 6.25inch outer diameter design combined with the single pleating technology of different filter media maximizes the filter area and dirt holding capacity of the filter cartridge. The extensive chemical resistance is suitable for various filtration occasions, and the 226 double O-ring seal design ensures that the retained pollutants will not migrate.
Full Description
Online Ordering
暫無(wú)選擇項(xiàng)
Please Select a Item
Applied filters:
| Specs | Product | Optional Parameters | Availability | Operate |
|---|
Related Documents
Features
- Fully thermally welded, no glue or adhesives
- Large diameter yields higher flflow rates
- High flow capacity permits use of fewer elements and cuts capital expenditure
- Positive o-ring seal assures filtration integrity
- Wide chemical compatibility
Applications
- Prefiltration of RO, Pretreatment of sea water desalination
- Condensed water treatment for power plant
- The fifiltration of bottled water, soft drinks and other beverage
- Microelectronics process water
- Surface water filtration
- Waste water fifiltration
Technical Parameters
| Materials of Construction | Filter Material | Deep pleated polypropylene/Resin synthetic glass fiber |
| Support/Drainage | PP | |
| End Cap | Polypropylene | |
| O-ring | 225/226 Double O-ring/EPDM, Nitrile, FKM | |
| Filter Dimensions | Outer Diameter | 6"（152mm） |
| Length | 20";40";60" | |
| Filtration Area | 6㎡@40" | |
| Recommended Performance Parameters | Maximum Operating Temperature | Deep pleated polypropylene：80℃ |
| Resin synthetic glass fiber：120℃ | ||
| Maximum Operating Pressure | Deep pleated polypropylene：2.5 bar@80℃ | |
| Resin synthetic glass fiber：2.5 bar@120℃ | ||
| Flow Direction | Outside to Inside |
