Retrofit for Hydranautics HYDRAcap Max60

Retrofit UF for Hydranautics Hydracap Max60

——MSFUF1070C

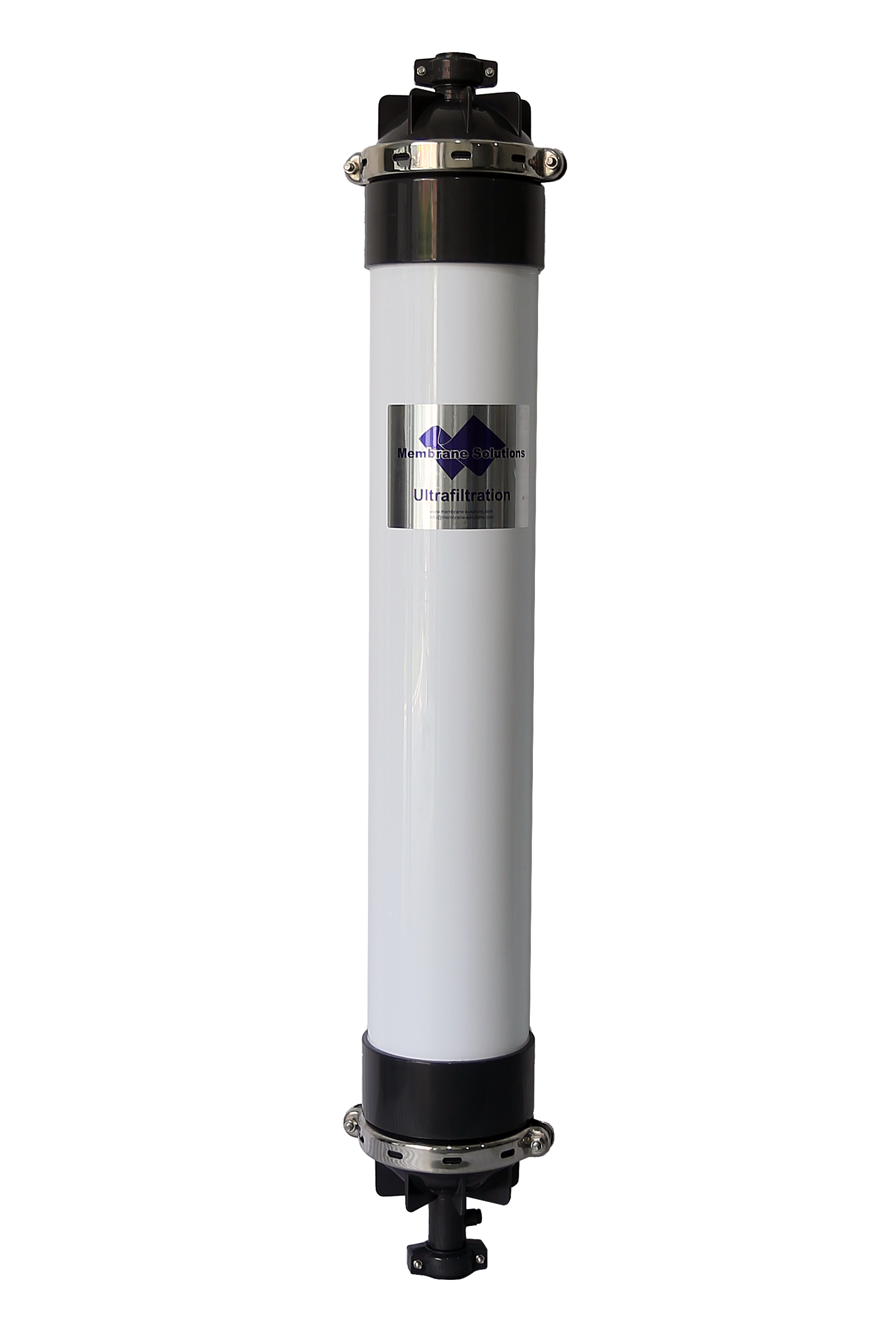

MSFUF1070C retrofit module is developed to replace Hydranautics Ultrafiltration module HYDRAcap MAX60 with compatible dimensions to make sure no pipe and fitting change is required. MSFUF1070C is made with hollow fiber PVDF material with high tensile strength and pore size 0.03μm, customer can follow existing operation and cleaning program when using them for replacement project.

Features and Advantages

0.03μm pore size guarantees stable permeate
Modified hydrophilic PVDF membrane with easy wetting performance
High tolerance to varying influent water qualities
Reduced pretreatment requirements due to outside-in flow
High chemical resistance
Energy saving due to low operating pressure
Standard models allow for easy retrofits

Material of Removal

Molecular weight cut off >100,000 Dalton

Particle size larger than 0.03μm

Bacteria and virus,etc.

Applications

Reverse osmosis pretreatment system

Municipal wastewater treatment

NSF potable water treatment

Industrial wastewater treatment

Wastewater recycle

Surface and groundwater treatment

Module Specifications

Module Type	MSFUF1070C
Membrane Surface Area	78 m²
Hollow Fiber Material	PVDF
Pore Size	0.03μm
ID / OD	0.7/1.3mm
Flow Direction	Outside-in
L	1,832.6 mm
L1	1,724.7 mm
L2	1,602.9 mm
D1	250 mm
D2	290 mm
L3	172 mm
C (Inlet/Outlet Connector)	DN50 (2" Victaulic)
Housing / Joint Material	UPVC / UPVC
Potting Material	Epoxy Resin
