FluorPure-DGS PTFE Cartridge Filter
Request a QuoteIntroduction
MS®FluorPure-DGS Micro cartridge filters use a natural hydrophobic PTFE double-layer membrane (0.2μm), provide sterile effluent and validated performance, ensuring process security. They are the cartridge of choice for critical sterile gas applications. And are built to withstand demanding insitu steaming conditions in either the forward or reverse direction, offer exceptionally high flow rates to ensure low installation, operating, and compressor energy costs.
Features
- Nature hydrophobic PTFE with lowest gravimetric extracts, broad chemical compatibility
- Provides superior bacteriophageprotection of microbial cultures
- Long steaming life offering low-cost filtration
- 100% integrity tested and through biological safety validation
Applications
- Filtration of compressed air and nitrogen
- Critical sterile for compatible gases
- Large-scale fermenter air
- Air and gas service lines
Quality Guarantee
- FDA Listed Materials
- ISO 9001 Certified Quality System
- Meets USP Class VI Biological Test for Plastics
- 100% integrity tested
- LVR for B. diminuta > 11
Specifications
| Materials of Construction | |
| Media | Double-layer PTFE ( Polytetrafluoroethylene) |
| Support/Drainage | Polypropylene |
| Cage/End Caps | |
| Core | Polypropylene/Polysulfone |
| Adapter | Polypropylene with reinforcing ring |
| O-Rings | Silicone/Ethylene Propylene Rubber |
| Dimension | |
| Outside diameter | 68.5mm |
| Lengths | 5″, 10″, 20″, 30″ |
| Effective Filter Area | 0.7m² per 254mm (10inch) |
| Recommended Operating Conditions | |
| Maximum operating temperature | 4.1Bar@80℃ |
| Maximum Forward Differential Pressure | 5.2Bar@25℃ |
| Maximum Reverse Differential Pressure | 2.1Bar@25℃ |
| Recommended change-out pressure | 2.4Bar |

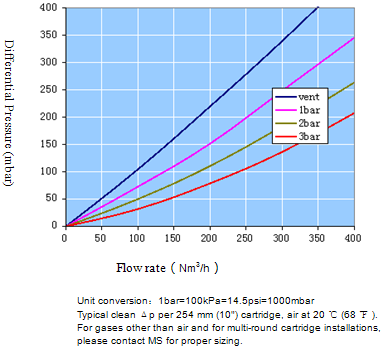

Pressure and Flow Rate
