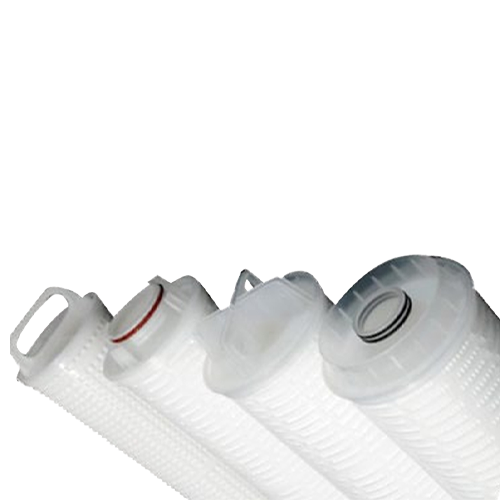

MS CrossPure Pleated Filter Cartridge with High Flow
How to combine the two factors of high flow rate and high dirt holding capacity is a challenge for all filter cartridges. MS CrossPure achieves this with rational material structure and sophisticated pleating technique. This filter cartridge can provide removal ratings of 1~70μm, and adopts a 6.5〞/165mm large diameter structure with extremely high filtration area and dirt holding capacity, which can be used for a variety of flow requirements, and can greatly reduce the number of filter cartridges and reduce the size of the cage. It can make the filtration system have a high filtration flow while occupying a small space, and a wide range of chemical applications can be applied in various fields.
Full Description
Online Ordering
暫無選擇項
Please Select a Item
Applied filters:
| Specs | Product | Optional Parameters | Availability | Operate |
|---|
Related Documents
Features
- Designed to fit inside existing 3M housings and provide an O-ring seal without housing modification
- High dirty holding capacity, longer service life Less cartridge change out to save the cost
- O-ring design cause no bypass to ensure the filtration efficiency
- It is available in a variety of filter media to meet industry standards and chemical compatibility
Applications
- Industrial- Municipal Water, RO Prefiltration, Coolants
- Chemical- Quench water, Final Products
- Electronics- RO Prefiltration, Process Water
- Food & Beverage- Process Water
- Pharmaceutical- Process Water
Technical Parameters
| Materials of Construction | Filter Material | Deep pleated polypropylene,/Resin synthetic glass fiber |
| Support/Drainage | PP | |
| End Cap | Polypropylene | |
| O-ring | FKM, EPDM | |
| Filter Dimensions | Outer Diameter | 6”（152.4mm） |
| Length | 20";40";60" | |
| Filtration Area | 6.5㎡@40" | |
| Recommended Performance Parameters | Maximum Operating Temperature | Deep pleated polypropylene：80℃ |
| Resin synthetic glass fiber：120℃ | ||
| Maximum Operating Pressure | Deep pleated polypropylene：3.4 bar@80℃ | |
| Resin synthetic glass fiber：3.4 bar@120℃ | ||
| Recommended pressure difference for filter cartridge replacement | 2.4 bar@20℃ | |
| Removal Ratings | 1~70μm | |
| Flow Direction | Outside to Inside |
