FluorPure-GSS PTFE Cartridge Filter
Request a QuoteIntroduction
MS®FluorPure-GSS Micro cartridge filter uses a natural hydrophobic PTFE membrane (0.2μm), pleated to give higharea in single open-end cartridges. These cartridge filters offer exceptionally high flow rates to ensure low installation, operating, and compressor energy costs. They provide an economical solution for large-scale fermenter air, general purpose venting, instrument air, and general duty air and gas service lines in the gas aseptic filtration of pharmaceutical industry,food and beverage industry.
Features
- Nature hydrophobic PTFE with lowest gravimetric extracts, broad chemical compatibility
- High flow rates and low pressure drop
- Long steaming life offering low-cost filtration
- 100% integrity tested and through biological safety validation
Applications
- Filtration of compressed air and nitrogen
- Solvent and gases aseptic filtration
- Large-scale fermenter air
- Air and gas service lines
Quality Guarantee
- FDA Listed Materials
- ISO 9001 Certified Quality System
- Meets USP Class VI Biological Test for Plastics
- 100% integrity tested
- LVR for B. diminuta > 11
Specifications
| Materials of Construction | |
| Media | PTFE (Polytetrafluoroethylene) |
| Support/Drainage | Polypropylene |
| Cage/End Caps | |
| Core | Polypropylene/Polysulfone |
| Adapter | Polypropylene with reinforcing ring |
| O-Rings | Silicone |
| Dimension | |
| Outside diameter | 68.5mm |
| Lengths | 5″, 10″, 20″, 30″ |
| Effective Filter Area | 0.7m² per 254mm (10inch) |
| Recommended Operating Conditions | |
| Maximum operating temperature | 1.9Bar@82℃ |
| Maximum Forward Differential Pressure | 5.2Bar@25℃ |
| Maximum Reverse Differential Pressure | 2.1Bar@25℃ |
| Recommended change-out pressure | 2.4Bar |

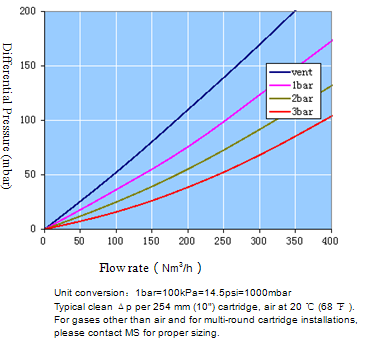

Pressure and Flow Rate
