MS? Vent Cap Bottle Assemblies
Request a QuoteDescription
Membrane Solutions (MS) Vent Cap Bottle assemblies are integrated, ready to use sterile liquid transfer system.A complete heat-sealable tube and a well-sealed vent cap make sure to remove or inject liquid from the bottle without opening the cap to eliminate the risk of contamination. There is no risk of batch-to-batch or product-to-product cross contamination,because of the disposable design. The range is available in vent Cap Bottle or GL45 vent cap .
Features
- Ready to use design saves time.
- Single Use and Gamma Ray pre-sterilized, no risk of cross contamination.
- Non-pyrogenic, through sealing and sterility verification（Ch.P), stable and reliable.
- GL45 threads accepts commonly used bottle style.
- Tubing is completely weldable/sealable.
- Integrated structure.
Applications
Membrane Solutions (MS) Vent Cap Bottle assemblies are ideal choices for key liquid transfer.
- Aseptic sampling
- Buffer & Media and sampling Storage
- Buffer and medium addition
- Bioreactor feeds D
- Membrane Solutions (MS) Vent Cap Bottle
- assemblies are ideal choices for key liquid transfer.
Specications
| Vent Filter | 25 mm,0.2µm， PTFE membrane， PP Body |
|---|---|
| End Plug | Polypropylene |
| Pinch Clamp | Polypropylene |
| Cap | Polypropylene |
| Pipe Coupling | Polypropylene |
| Tubing 1 | TPE |
| Tubing 2， 3 | Sillica Gel |
| Bottle | Polystyrene |
| Sterilization | Gamma Irradiated |

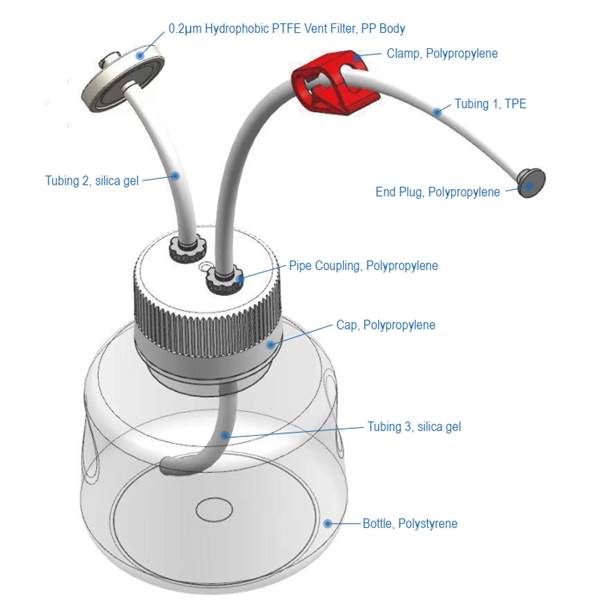

MS®Vent Cap Bottle Assembly Anatomy
Ordering Information
| Cat.No. | Specification | pcs/pk |
|---|---|---|
| VC001 | GL45 Vent Cap： Tube Plug:3.9mm;0.2µm Hydrophobic PTFE Vent Filter; Tubing 1:1/8"×1/4"(3.18mm×6.35mm),40cm; Tubing 2: 1/8"×1/4"(3.18mm×6.35mm),10cm; Tubing 3:1/8"×1/4"(3.18mm×6.35mm) ,20cm. |
48 |
| VC250 | 250mL Round Bottle. GL45 Vent Cap： Tube Plug:3.9mm;0.2µm Hydrophobic PTFE Vent Filter; Tubing 1:1/8"×1/4"(3.18mm×6.35mm),40cm; Tubing 2:1/8"×1/4"(3.18mm×6.35mm),10cm; Tubing 3:1/8"×1/4"(3.18mm×6.35mm) ,20cm |
12 |
| VC500 | 500mL Round Bottle. GL45 Vent Cap： Tube Plug:3.9mm;0.2µm Hydrophobic PTFE Vent Filter； Tubing 1:1/8"×1/4"(3.18mm×6.35mm),40cm; Tubing 2:1/8"×1/4"(3.18mm×6.35mm),10cm; Tubing 3:1/8"×1/4"(3.18mm×6.35mm) ,20cm |
12 |
| VC1000 | 1000mL Round Bottle. GL45 Vent Cap： Tube Plug:3.9mm;0.2µm Hydrophobic PTFE Vent Filter; Tubing 1:1/8"×1/4"(3.18mm×6.35mm),40cm; Tubing 2:1/8"×1/4"(3.18mm×6.35mm),10cm; Tubing 3:1/8"×1/4"(3.18mm×6.35mm) ,20cm ; |
12 |
