SteriPure Series PES Pleated Filter Cartridge with High Flow Rate and Long Service Life
SP series PES pleated filter cartridge is made of naturally hydrophilic highly asymmetric PES membrane. It has good heat resistance and can withstand hot water sterilization and steam sterilization for a long time. The removal rate of the filter cartridge to typical bacteria in industry passes bath validation. Longer flux can be provided while effectively reducing the load.
Full Description
Online Ordering
暫無選擇項(xiàng)
Please Select a Item
Applied filters:
| Specs | Product | Parameters | Availability | Price |
|---|
Related Documents
 |

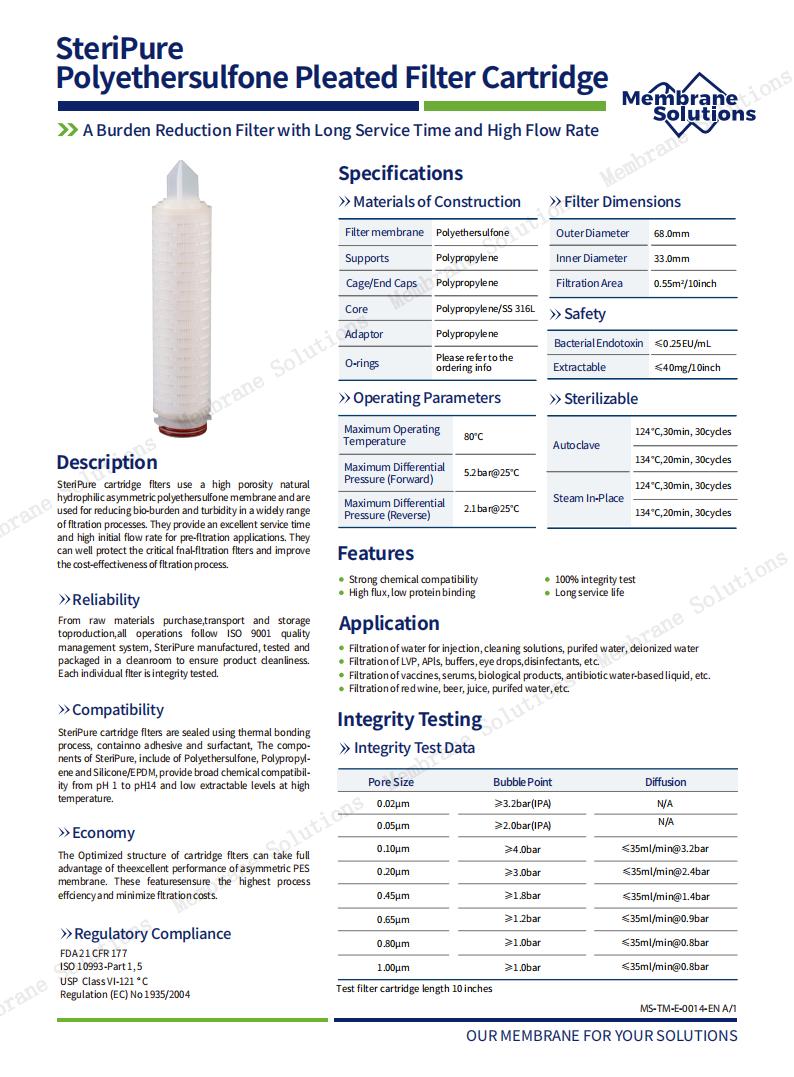

SteriPure -Datasheet |
Features
- Strong chemical compatibility
- High flux, low protein binding
- 100% integrity test
- Long service life
Applications
- Filtration of water for injection, cleaning solutions, purified water, deionized water
- Filtration of LVP, APIs, buffers, eye drops, disinfectants, etc.
- Filtration of vaccines, serums, biological products, antibiotic water-based liquid, etc.
- Filtration of red wine, beer, juice, bottled water, dairy products, etc.
- Turbidity removal filtration of liquor and spirits
Technical Parameters
| Materials of Construction | Filter Membrane | Polyethersulfone |
Support/Drainage |
Polypropylene | |
| Cage/End Cap | Polypropylene | |
| Core | Polypropylene/SS 316L | |
| Adaptor | Polypropylene | |
| O-rings | Please refer to the ordering info | |
| Filter Dimensions | Outer Diameter | 68.0mm |
| Inner Diameter | 33.0mm | |
| Filtration Area | 0.65m²/10inch | |
| Operating Conditions | Maximum Operating Temperature | 80℃ |
| Maximum Differential Pressure (forward) | 5.2 bar @ 25℃ | |
| Maximum Differential Pressure (reverse) | 2.1 bar @ 25℃ | |
| Safety | Endotoxins | ≤0.25 EU/mL |
| Extractables | ≤40 mg/10 inches | |
| Sterilizable | Autoclave | 124℃,30min,30cycles |
| 134℃,20min,30cycles | ||
| Steam In-Place |
124℃,30min,30cycles |
|
| 134℃,20min,30cycles | ||
