SteriPure-P Series Sterile-grade Double-layer PES Pleated Filter Cartridge with Long Service Life and High Efficiency
SPP series PES pleated filter cartridge is made of double-layer imported asymmetric PES membrane. The double-layer filter membrane is specially designed so that the filter cartridge has reliable sterilization ability and can provide longer flux.
Full Description
Online Ordering
暫無(wú)選擇項(xiàng)
Please Select a Item
Applied filters:
| Specs | Product | Parameters | Availability | Price |
|---|
Related Documents
 |

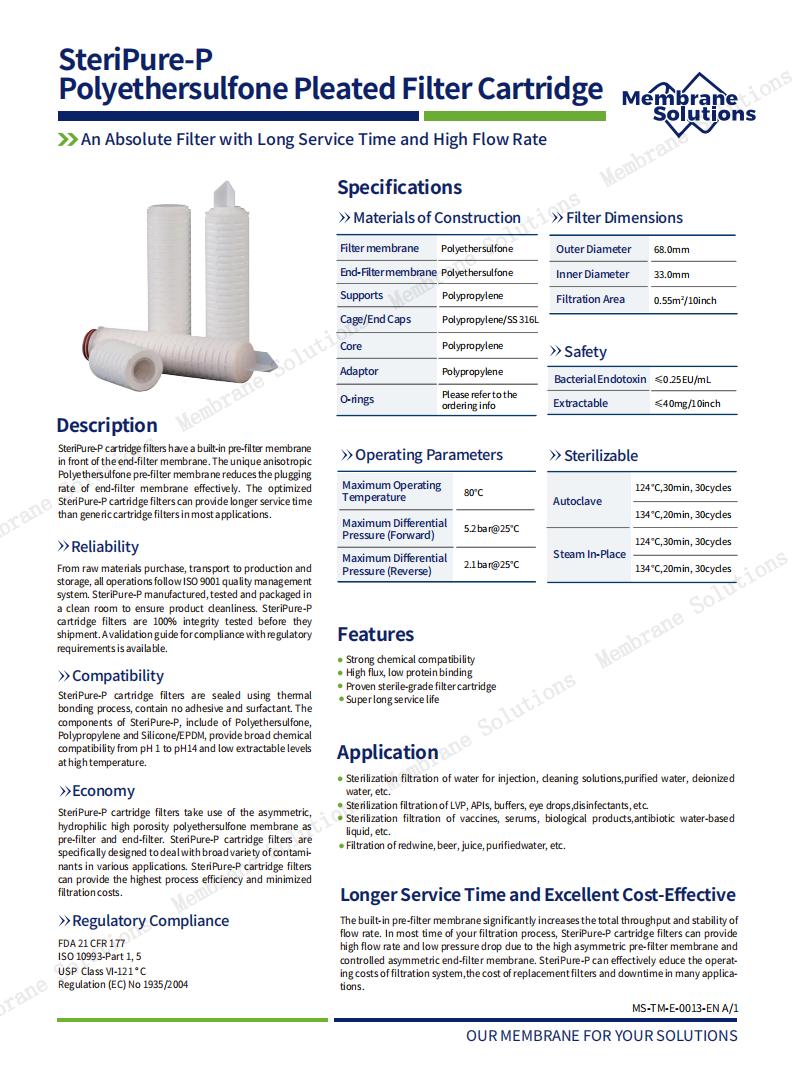

SteriPure-P-Datasheet |
Features
- Strong chemical compatibility
- High flux, low protein binding
- Proven sterilizing-grade filter cartridge
- Super long service life
Applications
- Sterilizing filtration of water for injection, cleaning solutions, purified water, deionized water
- Sterilizing filtration of LVP, APIs, buffers, eye drops, disinfectants, etc.
- Sterilizing filtration of vaccines, serums, biological products, antibiotic water-based liquid, etc.
- Filtration of red wine, beer, juice, purified water
- Sterilizing filtration of dairy products
Technical Parameters
| Materials of Construction | Filter Membrane | Polyethersulfone |
| End-Filter Membrane | Polyethersulfone | |
Support |
Polypropylene | |
| Cage/End Cap | Polypropylene | |
| Core | Polypropylene/SS 316L | |
| Adaptor | Polypropylene | |
| O-rings | Please refer to the ordering info | |
| Filter Dimensions | Outer Diameter | 68.0mm |
| Inner Diameter | 33.0mm | |
| Filtration Area | 0.55m²/10inch | |
| Operating Conditions | Maximum Operating Temperature | 80℃ |
| Maximum Differential Pressure (forward) | 5.2 bar @ 25℃ | |
| Maximum Differential Pressure (reverse) | 2.1 bar @ 25℃ | |
| Safety | Endotoxins | ≤0.25 EU/mL |
| Extractables | ≤40 mg/10 inches | |
| Sterilizable | Autoclave | 124℃,30min,30cycles |
| 134℃,20min,30cycles | ||
| Steam In-Place |
124℃,30min,30cycles |
|
| 134℃,20min,30cycles | ||
