What is PTFE membrane?

Polytetrafluoroethylene (PTFE) membrane is a microporous material made from a fluoropolymer through an advanced biaxial stretching process. It forms a unique spider-web-like micro-structure, with approximately 1.4 billion pores per square centimeter. The size of these pores ranges from 0.02 micrometers to 15 micrometers, enabling extremely high selectivity. It can block liquids, particles, and microorganisms while allowing gases and vapors to pass through.

Fig.1 The micro-pore pore structure of PTFE membrane

What are the applications of PTFE membranes?

Due to PTFE membrane's unique properties—chemical resistance, high-temperature tolerance, and low friction—it has become a staple in diverse filtration and separation applications. PTFE membranes effectively filter out particles and liquids while allowing gases to pass through, making them ideal for industrial processing  filtration, food and beverage filtration, and biopharmaceutical filtration.

Additionally, the special porous structure of PTFE membrane enables free passage of air and water vapor while repelling liquid water. This waterproof yet breathable characteristic has led to its widespread use in automotive sensors, outdoor electronics, and chemical packaging as a reliable protect material.

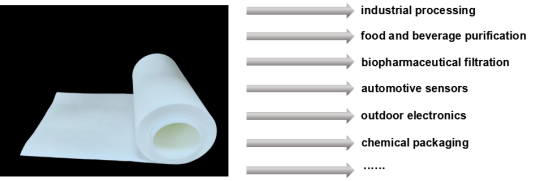

Fig.2 The application of PTFE membrane

What is the development trend of PTFE membrane?

Due to its extremely high porosity and unique pore structure, PTFE membrane is endowed with unique filtering and breathable functions. Currently, its application scope is gradually expanding with the development of technology. How to connect the characteristics of PTFE membrane with its applications will become an important direction for the later development of PTFE membrane. In addition, due to different usage requirements in multiple scenarios, surface modification of PTFE membrane to endow it with unique functions is also an important direction for later researchers and practitioners in the PTFE industry.

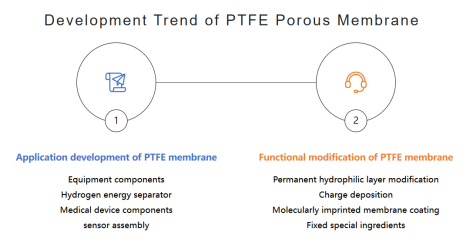

Fig.3 The development trend of PTFE membrane

Can PTFE membranes be replaced under PFAS Free regulations?

PTFE membrane has the advantages of corrosion resistance, high temperature resistance, high flux, high tensile strength, and low cost. Currently, we have not found a porous membrane material with similar performance to PTFE.Currently, only a few applications that do not require the aforementioned properties may be replaced, such as using UPE porous membranes instead of PTFE in certain medical devices to achieve waterproof and breathable functions. But under the limitations of this regulation, scientists will further increase their research and development efforts to develop alternative materials, and new materials may emerge within a few years or decades.
